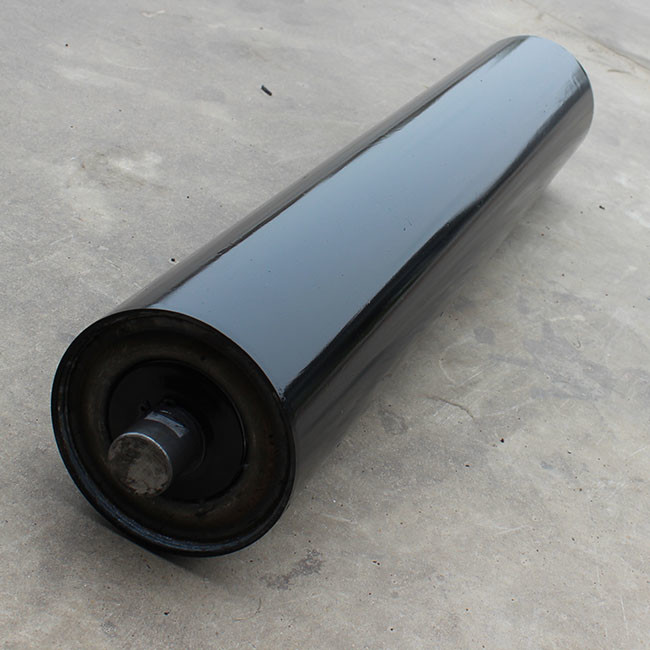

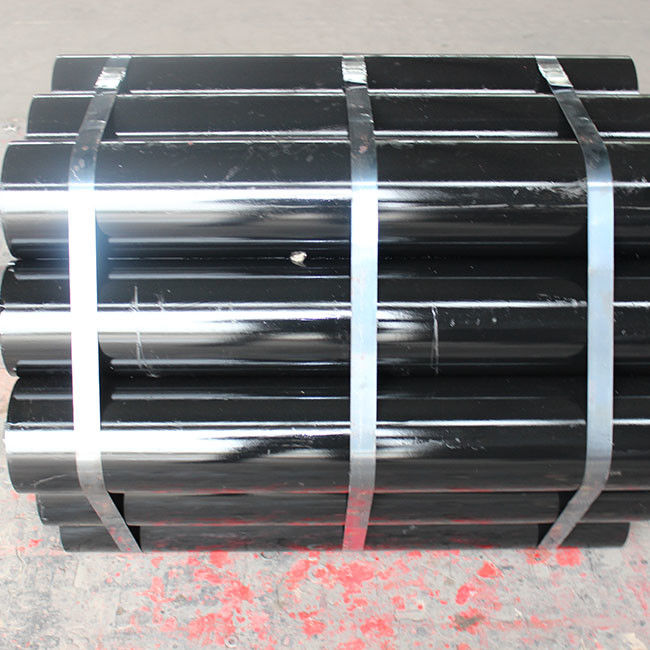

Customizable 108mm Dia Mining Conveyor Rollers

제품 설명

Cost Effective Mining Conveyor Rollers Customizable Long Assemble Disassemble Technology And Equipment

working principle

The belt conveyor is mainly composed of two end rollers and a closed conveyor belt tightly sheathed on them [1]. The drum that drives the conveyor belt to rotate is called driving drum (transmission drum); the other drum that only changes the movement direction of the conveyor belt is called steering drum. The driving roller is driven by the motor through the reducer, and the conveyor belt is driven by the friction between the driving roller and the conveyor belt. The driving roller is generally installed at the discharge end to increase the traction and facilitate the drag. The material is fed by the feeding end, falls on the rotating conveyor belt, and is transported to the discharge end for discharge by the friction of the conveyor belt.

The main feature of belt conveyor is that the fuselage can be easily retracted, with belt storage bin, the tail can be extended or shortened with the advance of coal mining face, and the structure is compact. It can be directly laid on the roadway floor without foundation. The frame is light and convenient for disassembly and assembly. When the conveying capacity and distance are large, the intermediate driving device can be equipped to meet the requirements. According to the requirements of the conveying process, the material can be transported by single unit or by multi unit combined with horizontal or inclined conveying system.

Belt conveyor is widely used in metallurgy, coal, transportation, water and electricity, chemical industry and other departments, because it has the advantages of large conveying capacity, simple structure, convenient maintenance, low cost, strong versatility and so on.

Scope of application

It can be used for horizontal transportation or inclined transportation, and it is very convenient to use. It is widely used in various modern industrial enterprises, such as underground roadway of mine, ground transportation system of mine, open pit and concentrator. According to the requirements of the conveying process, it can be transported by a single machine, or by multiple machines or with other conveying equipment to form a horizontal or inclined conveying system, so as to meet the needs of different layout forms of operation lines.

characteristic

Belt conveyor is an ideal high-efficiency continuous transportation equipment in coal mine. Compared with other transportation equipment (such as trucks), it has the advantages of long distance, large capacity, continuous transportation, reliable operation, easy to realize automation and centralized control. Especially for high-yield and high-efficiency mines, belt conveyor has become the key equipment of mechatronics technology and equipment in coal mining.

Belt conveyor is also used in building materials, electric power, light industry, grain, port, ship and other departments.
